Advanced Carbon & Semiconductor Thermal Solutions
In global semiconductor crystal growth, epitaxy, and advanced high-temperature thermal field applications, material purity, thermal uniformity, and coating density directly dictate crystal defect rates and equipment service life. As a global-market-oriented professional engineering team in semiconductor materials and CVD coatings, we break away from traditional product sales models. We deliver full-lifecycle services—ranging from cross-border reverse engineering mapping, customized material modification, cost-effective large-scale volume production, to international cleanroom quality assurance.
Our Core Engineering Strengths (Why Work With Us Global Clients)
Distinct from traditional intermediaries and single-process processing plants, we combine a deep physical and chemical understanding of advanced materials with on-site semiconductor application expertise. Addressing key pain points experienced by international clients—such as fracture, delamination, or contamination under ultra-high temperatures (>2000°C), highly corrosive gases (HCl/NH3), and extreme thermal stress—we provide highly competitive, customized replacement and optimization solutions.
1. Global Sample Mapping & Reverse Engineering
To address the pain points faced by global semiconductor equipment users—such as rapid iteration of thermal field components from mainstream equipment manufacturers (e.g., Applied Materials, Veeco, Aixtron), prolonged lead times, and exorbitant costs for OEM spare parts—we offer fast, accurate, physical- and chemical-grade reverse mapping and reconstruction services.
- High-Precision Point Cloud Reconstruction: Utilizing high-precision Coordinate Measuring Machines (CMM) and industrial-grade 3D laser scanners, we perform non-destructive point cloud acquisition on complex/worn OEM parts mailed or provided on-site by customers, maintaining precision within ±0.005 mm.
- Thermal Deformation Reverse Correction: We reverse-correct thermal creep and deformation caused by long-term exposure to ultra-high temperatures (>1800°C), accurately deducing original design tolerances to ensure 100% assembly fit when reconstructed parts are installed on OEM equipment.

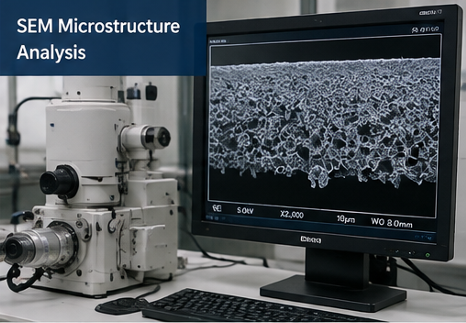

- Microstructure & Physicochemical Analysis: For Carbon/Carbon (C/C) composite susceptors or graphite crucibles, we analyze crystal plane distribution (e.g., (111) crystal orientation) and impurity spectra of OEM coatings via XRD, SEM, and ICP-MS to achieve flawless performance benchmarking.
| Service & Mapping Dimension | Traditional OEM Model | Our Global Solution |
| Mapping & Response Cycle | Generally does not offer non-standard/customized mapping; evaluation cycle for new requests takes 4–8 weeks. | Mapping initiates within 24 hours of receiving samples; complete 3D modeling and engineering drawings are delivered within 3–5 days. |
| Deformed Worn Part Compensation | Manufactures strictly based on fixed standard drawings; incapable of restoring or re-engineering deformed/worn parts. | Integrates reverse thermal deformation correction algorithms to deduce original tolerances, guaranteeing 100% seamless assembly. |
| Coating Micro-Analysis & Optimization | Coating technical parameters are completely undisclosed; replacement parts easily crack or peel due to orientation mismatch. | Provides complimentary SEM coating cross-section and XRD orientation analysis, enabling precise matching and targeted process optimizations. |
| Service Threshold & NRE Fees | Charges exorbitant NRE (Non-Recurring Engineering) testing fees for R&D or small-batch customization with high MOQs. | Zero NRE fee threshold; supports single-piece R&D mapping, sample validation, and engineering modifications for replacement parts. |
2.Advanced Materials Selection & Tailored Design
There is no 'one-size-fits-all' material for semiconductor high-temperature thermal fields. Proper material selection requires a precise match across thermal conductivity, anisotropy, coefficient of thermal expansion (CTE), and corrosion resistance. We provide scientific material matching and thermal field structural optimization based on our global clients' specific process environments.
- Ultra-High Purity Isostatic Graphite: We select high-density, fine-grain isostatic graphite with a bulk density ≥ 1.85 g/cm³. Following ultra-high temperature purification, ash content is controlled to < 5 ppm, delivering superior isotropy and high-temperature mechanical strength.

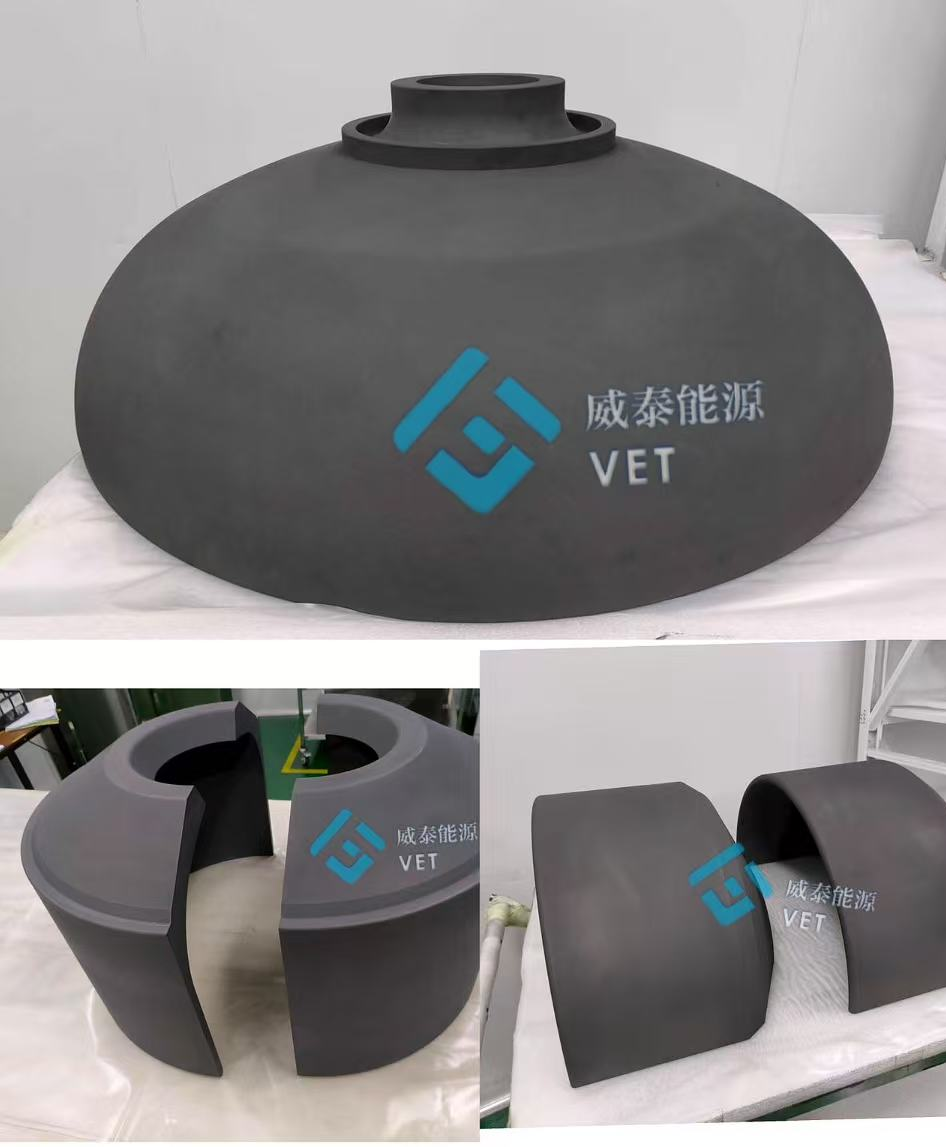

- Long-Life C/C Composites: Employing 2.5D/3D needle-punched carbon fiber preforms subjected to multi-cycle CVD/CVI deposition, tensile and impact strength far exceed traditional graphite, significantly lowering the risk of fracture in large-scale high-temperature components.

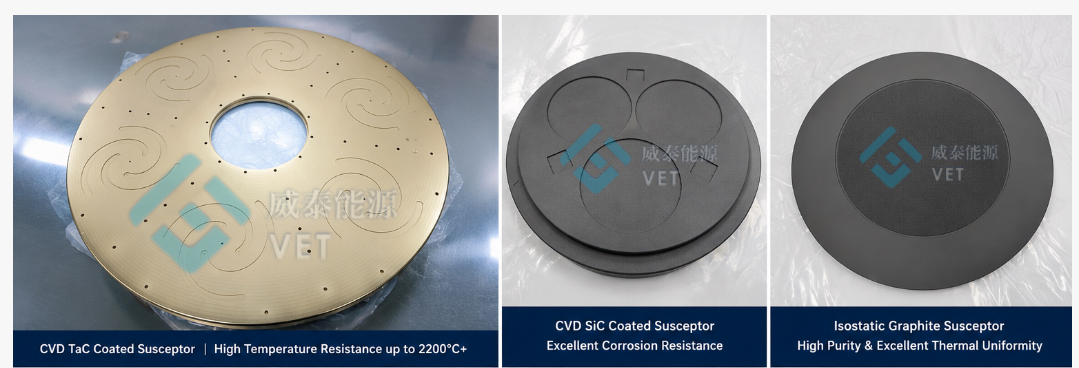

- CVD SiC / TaC Coating Technology: Utilizing CVD technology to deposit dense β-SiC coatings (resistant to H2/HCl erosion) or CVD TaC coatings with a melting point up to 3880°C (completely resolving SiC sublimation and cracking issues at 2000°C+ ultra-high temperatures).
- FEA / CFD Thermal & Gas Flow Simulation: Using Ansys/COMSOL to simulate thermal stress distribution and gas flow fields on MOCVD wafer carriers, assisting international clients in optimizing thermal uniformity (ΔT ≤ 1.5°C) to substantially enhance wafer epitaxial consistency.
| Material & Selection Dimension | Industry Standard | Our Advanced Solution | Tangible Value for Global Clients |
| Isostatic Graphite Purity | Ash content ≤ 20 ppm | Ultra-high temperature chlorination purification: Ash content < 2–5 ppm | Significantly reduces heavy metal contamination and defect rates during crystal growth. |
| C/C Composite Density | Density 1.65 – 1.70 g/cm³ | Multi-cycle CVI + resin carbonization: Density ≥ 1.80 g/cm³ | Tensile strength increases by 30%, extending component service life by over 50%. |
| Coating Variety & Temp Limit | Single SiC coating (Temperature limit < 1700°C) | CVD TaC (Tantalum Carbide) coating (Temperature resistance up to 2200°C+) | Completely solves SiC coating sublimation and peeling under aggressive NH3/H2 environments. |
| Thermal Stress Matching Design | Fixed wall thickness design, prone to cracking at thermal cycle corners | FEA simulation-optimized gradient wall thickness and CTE transition layers | Completely eliminates coating cracking and delamination risks under thermal cycling and gas erosion. |
3.Cost-Effective Mass Production & Supply Chain Guarantee
From R&D prototype samples to reliable global mass delivery, robust engineering manufacturing capabilities dictate final product cost-effectiveness and supply chain resilience. We leverage high-precision machining and large-capacity CVD deposition facilities to ensure high-reliability delivery to global clients.
- 5-Axis Precision CNC Machining: Equipped with high-precision 5-axis CNC machining centers specially engineered for semiconductor-grade graphite and C/C materials, maintaining strict machining tolerances within ±0.01 mm.
- High-Temperature Purification & Large CVD Capacity: Impurities are thoroughly removed under 2200°C–2400°C vacuum atmospheres to achieve purity levels < 0.5 ppm. Combined with multiple large-scale CVD furnaces, we realize highly dense, high-adhesion gradient coating depositions.
- Efficient Same-Batch Co-Deposition Process: Through specialized gas-flow fixture design and multi-part co-deposition techniques, chamber space utilization inside CVD furnaces is maximized, restricting coating thickness deviation across the same batch strictly within ±5%.
| Production & Supply Chain Dimension | Traditional OEMs / Overseas Suppliers | Our Global High-Response Supply Chain |
| Machining Tolerance Control | Standard parts ±0.05 mm; high-precision tight-tolerance components incur extra charges. | 5-axis CNC precision machining as standard across all lines, with tolerances stably controlled within ±0.01 mm. |
| Batch Coating Thickness Deviation | Thickness variation across different positions in the same batch often exceeds ±12%, resulting in low batch consistency. | Optimized dedicated flow-field fixtures maintain coating thickness deviation across the same batch strictly within ±5%. |
| Global Lead Time | Protracted overseas production scheduling and cross-border allocation, often resulting in 12–24 week lead times. | Agile flexible manufacturing and international express channels deliver standard parts in 2–3 weeks and urgent orders in 7–10 days. |
| Total Procurement & Replacement Cost | High brand premiums combined with international logistics and tariff impacts yield high total procurement costs. | Leveraging efficient production capacity and high-utilization CVD processes helps clients reduce procurement costs by 30%–50%. |
4.Global Quality Standard & International Logistics
Semiconductor-grade carbon and coated components are highly fragile and extremely sensitive to micro-contamination. Our quality assurance system spans every stage—from raw material receiving to cleanroom unpacking at client facilities globally.
- Rigorous Full-Process Inspection: We employ non-destructive ultrasonic testing and XRF thickness gauges to verify coating thickness (SiC 50–100 μm, TaC 20–40 μm), alongside rapid room-temperature-to-1600°C thermal shock testing on sampled lots.
- Purity Analysis & Factory COA: Full-element impurity profiling is conducted via ICP-MS and GDMS. Every shipment is accompanied by an extensive Certificate of Analysis (COA) directly from our lab.

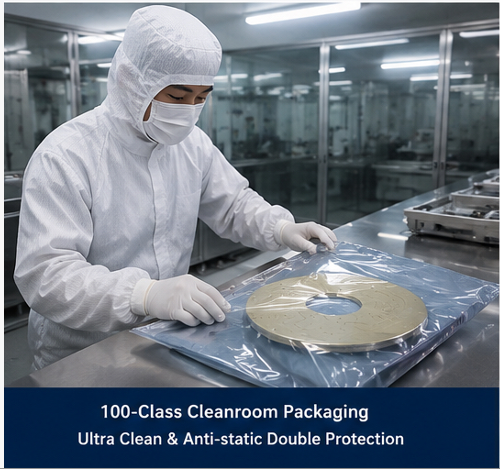

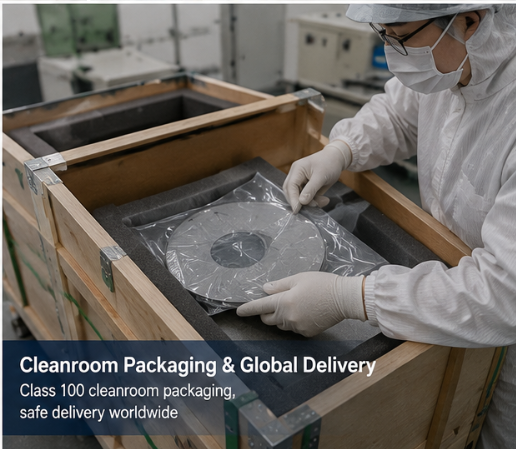

- Class 100 Cleanroom Packaging & Export Shockproof Logistics: Components undergo ultrasonic cleaning and double-layer anti-static vacuum packaging inside a Class 100 cleanroom. Outer packaging utilizes custom high-density EVA foam reinforcement and export-standard wooden crates, ensuring zero transit damage during international air or ocean freight.
| Quality & Service Assurance Dimension | Traditional OEMs / Overseas Suppliers | Our International Service Commitment |
| Cleaning & Packaging Standards | Mainly standard industrial packaging; some parts require secondary cleaning by the customer before cleanroom entry. | Class 100 cleanroom ultrasonic cleaning + double-layer anti-static vacuum packaging, enabling immediate line-readiness upon opening. |
| Inspection Data Transparency | Provides only a basic Certificate of Conformance (CoC) without detailed full-element impurity spectra or coating thickness maps. | Includes complete factory COA with every shipment, featuring ICP-MS spectra and XRF coating thickness distribution maps. |
| Cross-Border Transit Damage Protection | Claims and liability attribution processes for transit damage are lengthy, causing downtime and project delays. | Export-grade custom EVA shockproof wooden crates; in case of transit damage, we guarantee 100% prioritized rapid re-shipment. |
| Global Technical Support Response | Slow cross-time-zone email transfers; high costs associated with dispatching field technical engineers. | Dedicated Foreign Trade Sales Engineers + R&D Team available 24/7, providing technical solutions within 24 hours. |
