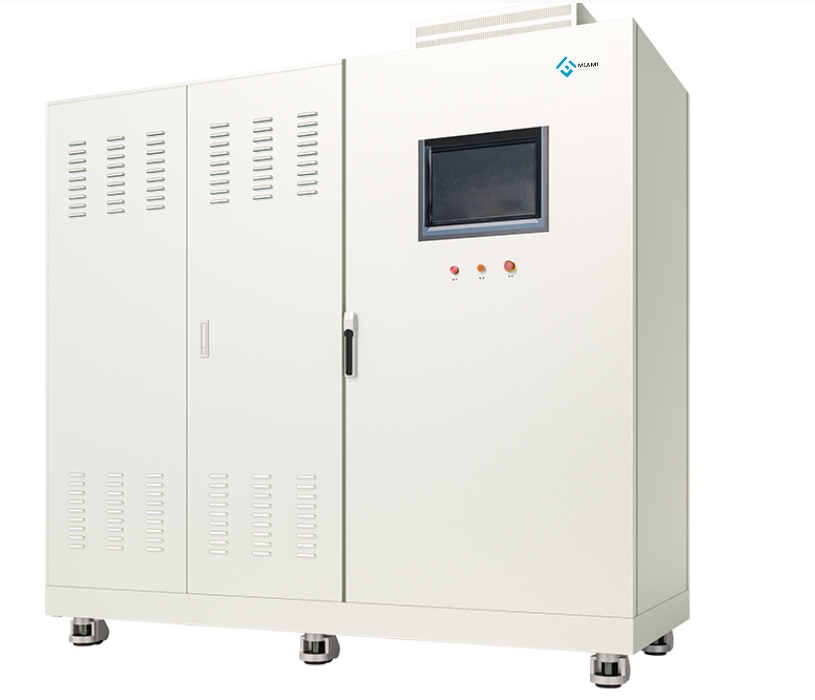

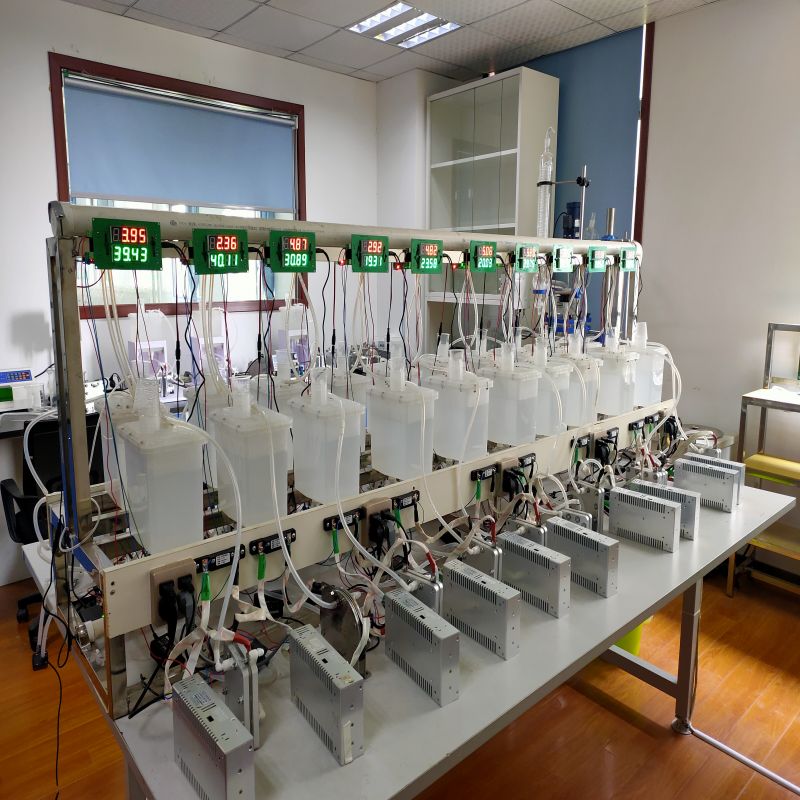

VET Fuel cell test platform

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, focusing on new material technology and automotive products. We are professional manufacturer and supplier with our own factory and sales team.

Send email to us Download as PDF

Product Detail

Product Tags

Product Features:

Professional design, complete function

Parts are selected from international famous brands, high precision, good reliability

Independent development of professional fuel cell testing software, friendly interface, simple operation, easy to use

Users can set, store and call the working condition file freely

Automatic data storage with adjustable storage rate

With constant current, constant power, constant voltage, scanning current, scanning voltage and other discharge modes

It can run unattended automatically for a long time

Software lifetime use, provide upgrade service

Customized products can be provided according to user requirements

Technical parameters:

model	YK-A05	YK-A10	YK-A20	YK-A50
power	50W	100W	200W	500W
Current range	0~200A	0~200A	0~200A	0~500A
Voltage range	0.2~5V	0.2~5V	0.2~10V	0.2~10V
Gas pressure range	0~3bar	0~3bar	0~3bar	0~3bar
Anode flow range	1slpm	2Slpm	5Slpm	10slpm
Cathode flow range	5Slpm	10Slpm	20Slpm	50slpm
Flow control accuracy	0.2%F.S.+0.8%RDG
Gas temperature range	RT~85°C
Temperature control accuracy	土1℃
Gas dew point range	RT~85°C
Gas back pressure range	0.2~3Bar
Single cell voltage detection channel	3	3	3	3
Voltage detection range	-2.5V~2.5V
Accuracy of measurement	土1mv
Overall dimensions	1200X 1000 X2000mm (LXWXH)

Function:

Gas flow control	automatic
The temperature control	PID
Gas humidification	contact
Switch between dry and wet gas modes	automatic
Gas back pressure control	Automatic or manual
Reaction gas mixing ratio	Automatic or manual
Battery thermal balance management	automatic
Nitrogen purging	automatic
Humidification consumes water supply	automatic
Software Security protection	automatic
Hardware Security Protection	automatic
Hazardous gas leakage detection	automatic
Scram button	manual
