Pemfc Fuel Cell Metal 1000w Pemfc Stack Hydrogen Fuel Cell Stack For Uav

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Pemfc Fuel Cell Metal 1000w Pemfc Stack Hydrogen Fuel Cell Stack For Uav anufacturer and supplier.

we are focusing on new material technology and automotive products.


Product Detail

Product Tags

The Pemfc Fuel Cell Metal 1000w Pemfc Stack Hydrogen Fuel Cell Stack For Uav made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Pemfc Fuel Cell Metal 1000w Pemfc Stack Hydrogen Fuel Cell Stack For Uav with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.



A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.



The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

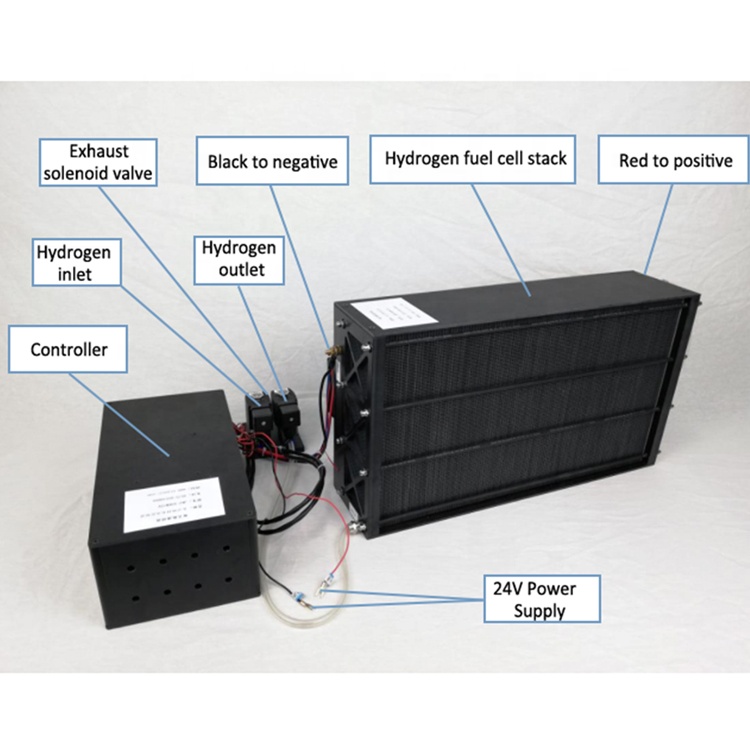

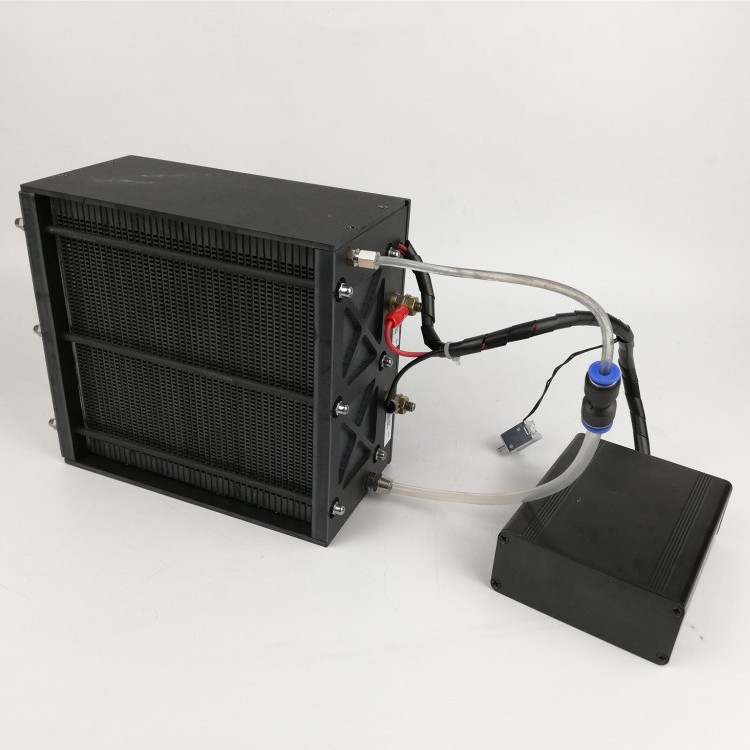

1000W-24V Hydrogen Fuel Cell Stack

Inspection Items & Parameter

Standard

Output performance

Rated power 1000W
Rated voltage 24V
Rated current 42A
DC voltage range 22-38V
Efficiency ≥50%


Fuel

Hydrogen purity ≥99.99%(CO<1PPM)
Hydrogen pressure 0.045~0.06Mpa


Environmental characteristics

Working temperature -5~35℃

Working environment humidity

10%~95%(No mist)

Storage ambient temperature

-10~50℃
Noise ≤60dB
Physical parameter  Stack size(mm)  156*92*258mm

Weight (kg)

2.45Kg

74 102 6_49578 5 8 12 14 1111111

Why you can choose vet ?
1) we have sufficient stock guarantee.

2) professional packaging ensures product integrity. The product will be delivered to you safely.

3) more logistics channels enable products to be delivered to you.
