High Purity Molded Graphite with low price

Graphite block is made from the domestic petroleum coke and widely used in the metallurgy, machinery, electronics and chemical industry, etc. The graphite block include molded, extruded, vibrated and isostatic.

Raw material ->Medium crushing / milling ->Screening -> dosing -> kneading-> vibrated molding->impregnation -> baking-> graphitization

Feature of Special Graphite Products

The demand from industry over the years has been for carbon with increasingly tighter and stable properties. we produced the isostatic graphite products tested National Electric Carbon Products Quality Supervision and Inspection Center, the main physical and chemical properties have reached: compressive strength 125MPa, a Shore hardness of 65 degrees, the resistivity 12μΩm. Is the only country capable of producing more than 800mm diameter, particle size less than 18 microns large-sized enterprise isostatic graphite products, make up the domestic market blank large size of graphite products, products by customer applications, good performance, to meet the needs and improve the domestic and other isostatic graphite products share. While being 10μm trial following products, has entered the small-scale production; more high quality isostatic specialty graphite finished rate of 90%, far ahead of the industry's yield of 70%, living first in the country.

The application for this grade is specific to industries and applications like:

(1) Diamond Tool Pressure Sintering
(2) Die Moulds
(3) Continuous Casting Dies for Aluminium, Copper and Brass
(4) Degassing Rods
(5) Crucibles and Sealing Rod
(6) Semi Conductor applications
(7) Solar Technology applications
(8) EDM Applications

Features:
- Fine grain
- Homogeneous structure
- High density
- Excellent thermal conductivity
- High mechanical strength
- Proper electrical conductivity
- Minimum wettability to molten metals

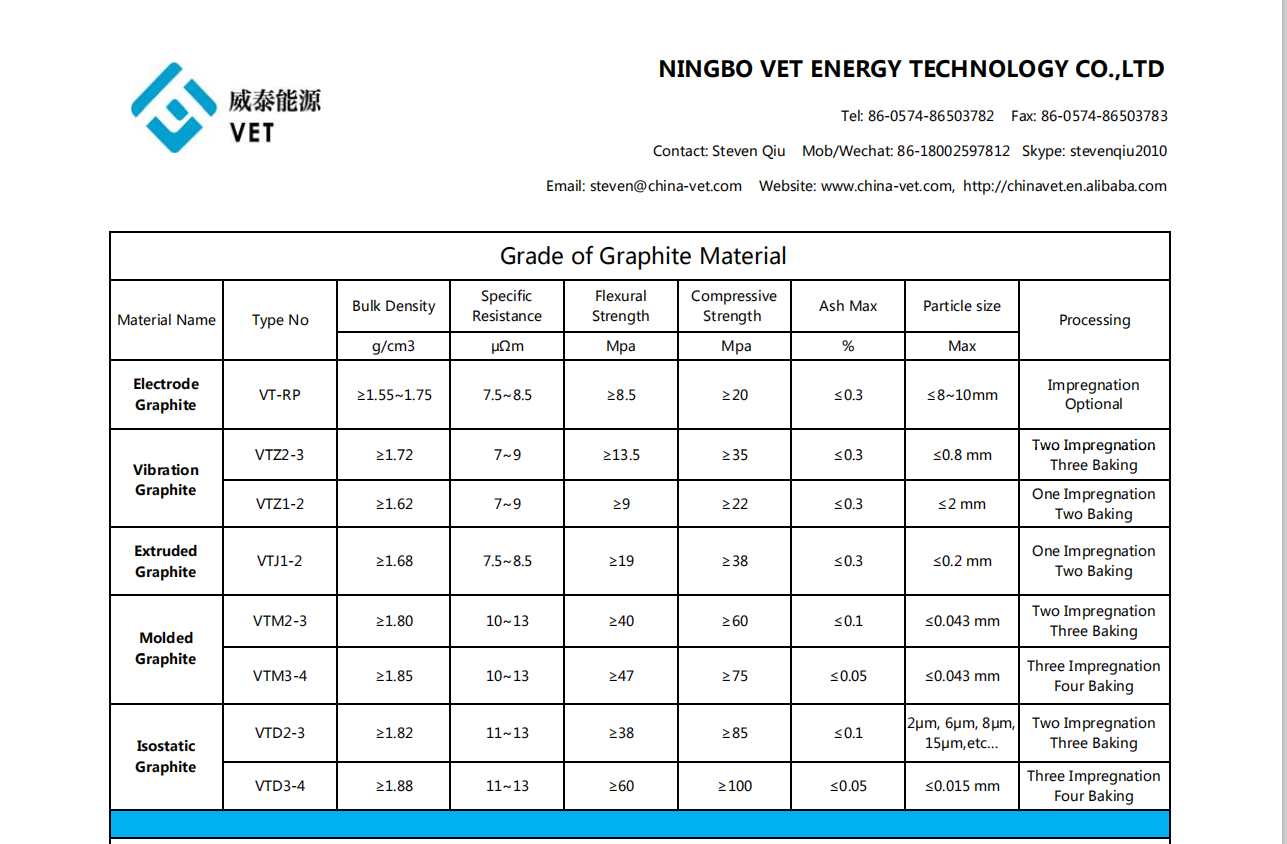

Typical Sizes:

* Other dimensions are available on request.

Ningbo VET Co.,LTD is a manufacturer specialized in production and sales of special graphite products and automotive metal products in zhejiang province. Using high quality imported graphite material, to independently produce various of shaft bushing, sealing parts, graphite foil, rotor, blade, separator and so on, also with the electromagnetic valve body, valve block and other hardware products. We directly import various specifications of graphite materials from Japan, and supply domestic customers with graphite rod, graphite column, graphite particles, graphite powder and impregnated, impregnated resin graphite rod and graphite tube,etc. We customize graphite products and aluminum alloy products according to the needs of customers, which helps our customers achieve success. In line with the enterprise spirit of "integrity is the foundation, innovation is the driving force, quality is the guarantee", adhering to the enterprise tenet of "solving problems for customers, creating the future for employees", and taking "promoting the development of low-carbon and energy-saving cause" as the enterprise mission, we strive to build a first-class brand in the field.

Q1:What are your prices?
Our prices are subject to change on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Q2:Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity.
Q3:Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q4:What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 15-25 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. In all cases we will try to accommodate your needs. In most cases we are able to do so.
Q5:What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:
30% deposit in advance, 70% balance before shipment or against the copy of B/L.
Q6:What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
Q7:Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
Q8:How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
