“Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for Hot New Products 100W 200W 300W Pem Hydrogen Fuel Cell Air Cooling Hydrogen Electricity Generator Fuel Cell, Should further more info be required, remember to call us at any time!
“Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for China Hydrogen Fuel Cell and Pem Fuel Cell, If you are for any reason unsure which product to select, do not hesitate to contact us and we’ll be delighted to advise and assist you. This way we will be providing you with all the knowledge needed to make the best choice. Our company strictly follows “Survive by good quality, Develop by keeping good credit. ” operation policy. Welcome all the clients old and new to visit our company and talk about the business. We’re looking for more and more customers to create the glorious future.
The Hydrogen Fuel Cell Stack 60w Fuel Cell For UAV Hydrogen Fuel Cell For Sale made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Hydrogen Fuel Cell Stack 60w Fuel Cell For UAV Hydrogen Fuel Cell For Sale with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.
A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.
The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

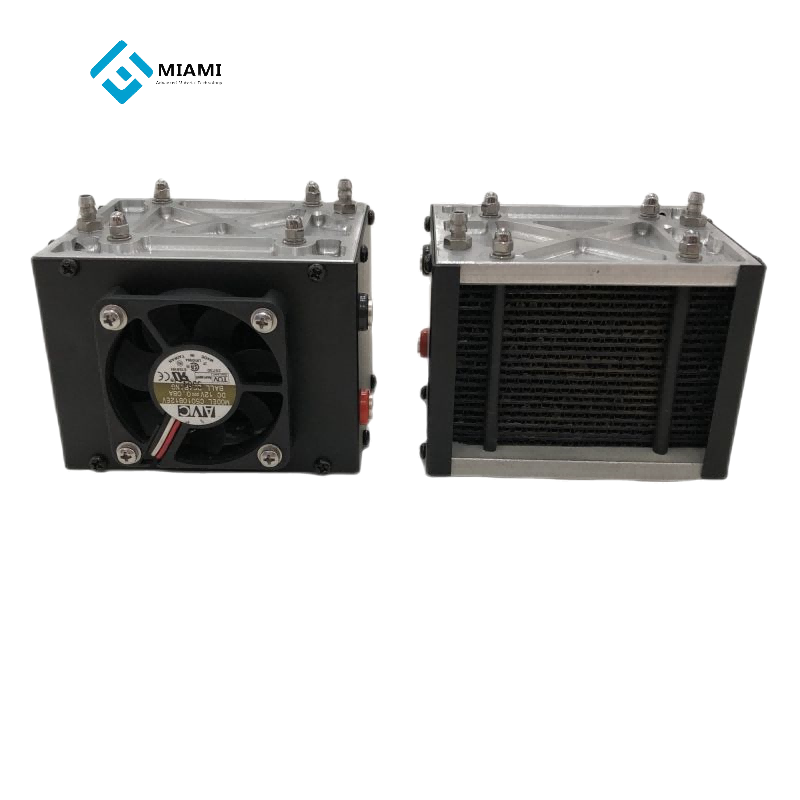

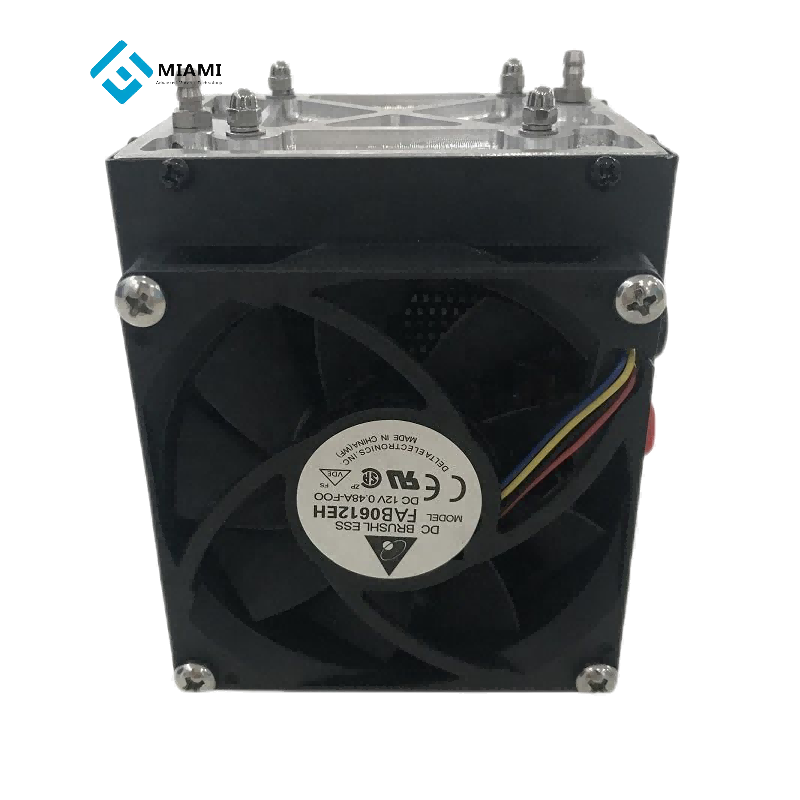

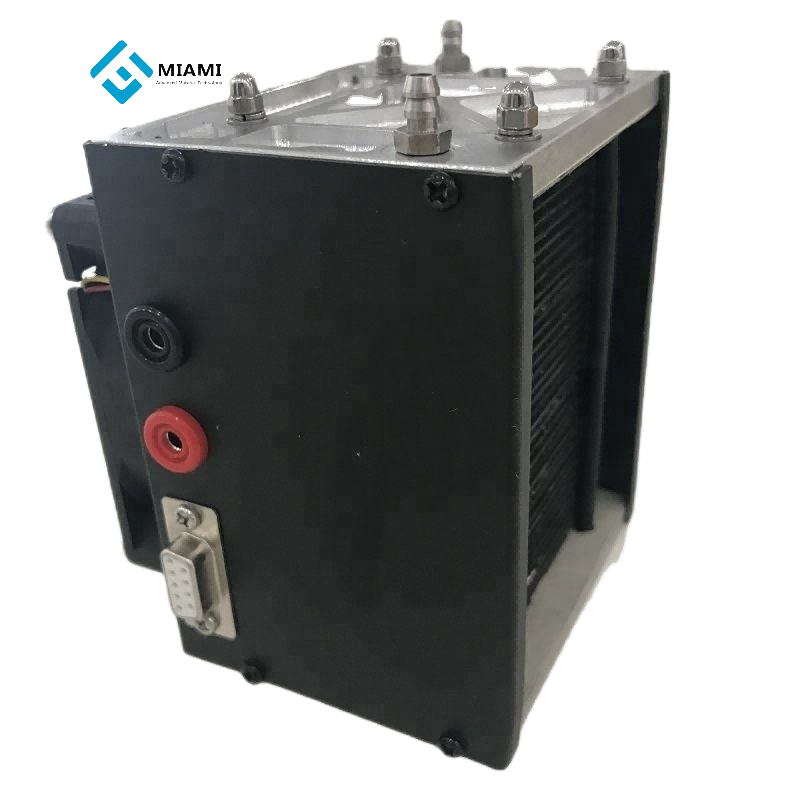

60W-12V Hydrogen Fuel Cell Stack
|
Inspecton Items & Parameter |
|||
|
Standard |
Analysis | ||
|
Output performance |
Rated power | 60W | 79.2W |
| Rated voltage | 12V | 12V | |
| Rated current | 5A | 6.6A | |
| DC voltage range | 8-17V | 12V | |
| Efficiency | ≥50% | ≥53% | |
| Fuel | Hydrogen purity | ≥99.99%(CO<1PPM) | 99.99% |
| Hydrogen pressure | 0.04~0.06Mpa | 0.05Mpa | |
| Hydrogen consumption | 600mL/min | ||
|
Environmental characteristics |
Working temperature | -5~35℃ | 28℃ |
| Working environment humidity | 10%~95%(No mist) | 60% | |
| Storage ambient temperature | -10~50℃ | ||
| Noise | ≤60dB | ||
VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.
Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.
With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.
Why you can choose vet ?
1) we have sufficient stock guarantee.
2) professional packaging ensures product integrity. The product will be delivered to you safely.
3) more logistics channels enable products to be delivered to you.”Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for Hot New Products 100W 200W 300W Pem Hydrogen Fuel Cell Air Cooling Hydrogen Electricity Generator Fuel Cell, Should further more info be required, remember to call us at any time!
Hot New Products China Hydrogen Fuel Cell and Pem Fuel Cell, If you are for any reason unsure which product to select, do not hesitate to contact us and we’ll be delighted to advise and assist you. This way we will be providing you with all the knowledge needed to make the best choice. Our company strictly follows “Survive by good quality, Develop by keeping good credit. ” operation policy. Welcome all the clients old and new to visit our company and talk about the business. We’re looking for more and more customers to create the glorious future.
