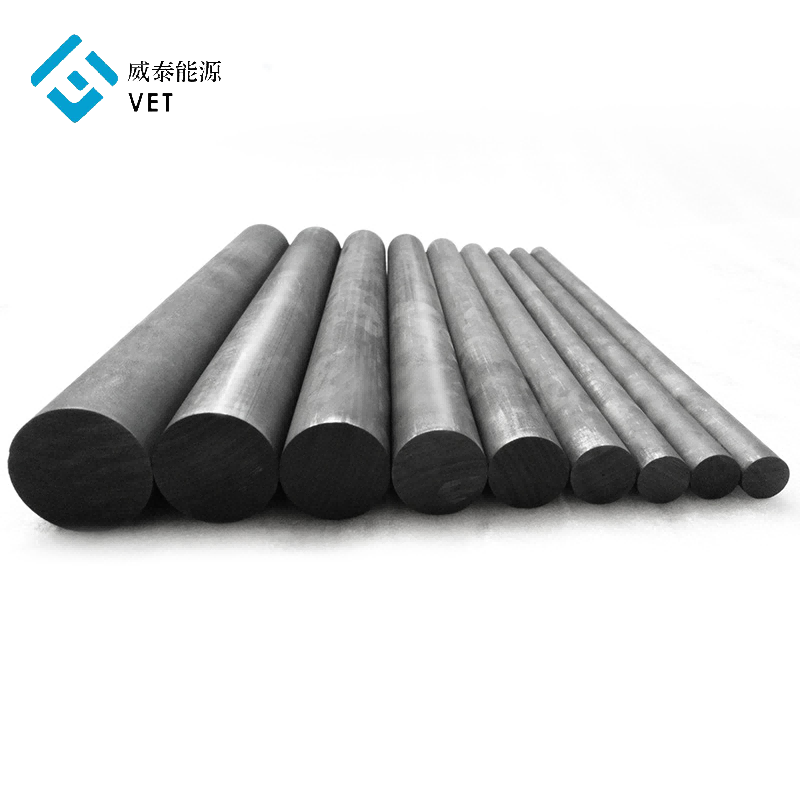

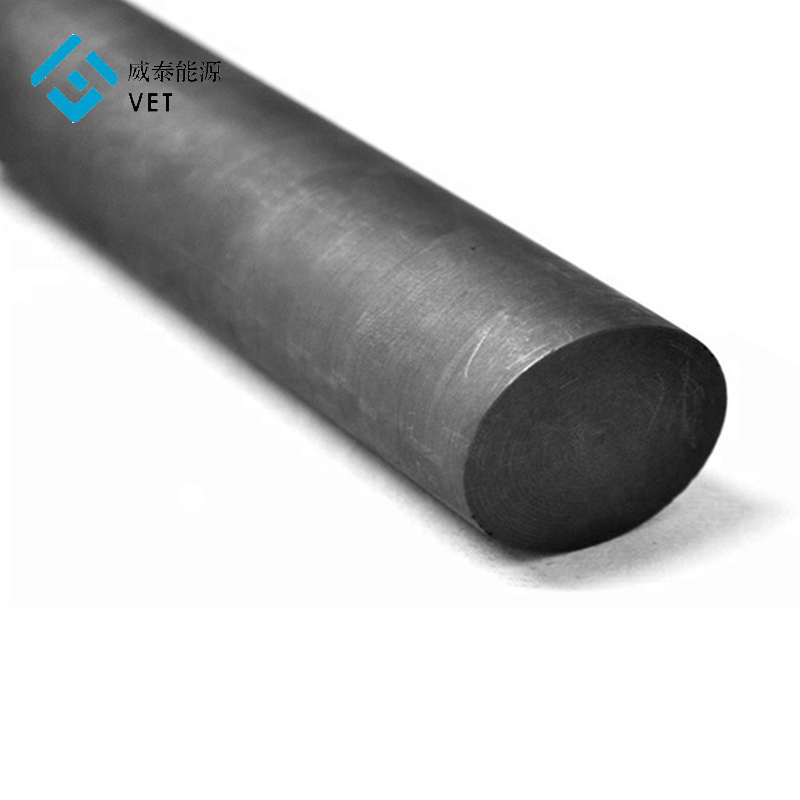

High purity graphite rod custom carbon rod high temperature and corrosion resistance

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply High purity graphite rod custom carbon rod high temperature and corrosion resistance nufacturer and supplier. we are focusing on new material technology and automotive products.

Send email to us Download as PDF

Product Detail

Product Tags

Graphite tube features:

High strength, High mechanical strength
High corrosion resistant ,high temperature…

Suitable for:
Thrust washers, Bushings & bearings
Commonly in furnaces and heating elements
Degassing shafts and impellers, fluxing and injection tubes

Extremes of elements and potential stresses.

Grade of Graphite Material
Material Name	Type No	Bulk Density	SpecificResistance	FlexuralStrength	Compressive Strength	Ash Max	Particle size	Processing
Material Name	Type No	g/cm3	μΩm	Mpa	Mpa	%	Max
Electrode Graphite	VT-RP	≥1.55~1.75	7.5~8.5	≥8.5	≥20	≤0.3	≤8~10mm	Impregnation Optional
Vibration Graphite	VTZ2-3	≥1.72	7~9	≥13.5	≥35	≤0.3	≤0.8 mm	Two ImpregnationThree Baking
Vibration Graphite	VTZ1-2	≥1.62	7~9	≥9	≥22	≤0.3	≤2 mm	One ImpregnationTwo Baking
Extruded Graphite	VTJ1-2	≥1.68	7.5~8.5	≥19	≥38	≤0.3	≤0.2 mm	One ImpregnationTwo Baking
Molded Graphite	VTM2-3	≥1.80	10~13	≥40	≥60	≤0.1	≤0.043 mm	Two ImpregnationThree Baking
Molded Graphite	VTM3-4	≥1.85	10~13	≥47	≥75	≤0.05	≤0.043 mm	Three ImpregnationFour Baking
Isostatic Graphite	VTD2-3	≥1.82	11~13	≥38	≥85	≤0.1	2μm, 6μm, 8μm, 15μm,etc…	Two ImpregnationThree Baking
Isostatic Graphite	VTD3-4	≥1.88	11~13	≥60	≥100	≤0.05	≤0.015 mm	Three ImpregnationFour Baking

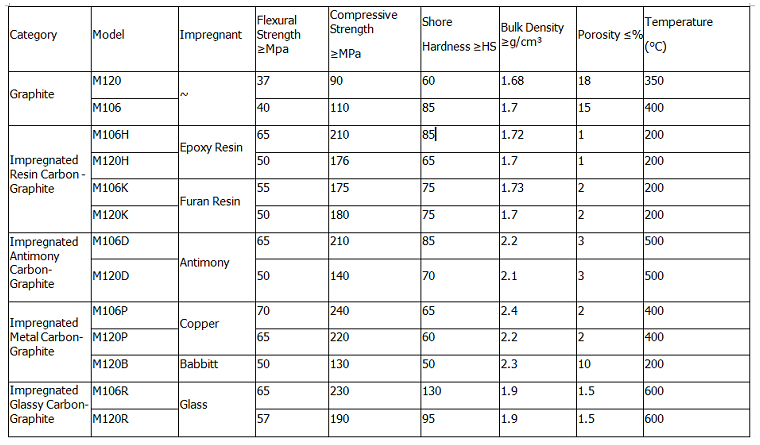

Carbon Graphite Material

FAQ

Q: Are you trading company or manufacturer?

A:We are an more than 10 vears factory with iso9001 certificacted

Q:How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock,or 10-15 days if the goods are not in stock, it is according to your quantity.

Q: How can Iget the sample to check your quality?

A: After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality,we will provide you sample for free as long as you afford the express freight.

Q:What is your terms of payment?

A: We accept payment by Western union,Pavpal,Alibaba,T/TL/Cetc..for bulk order,we do 30% deposit balance before shipment.

if you have another question,pls feel free to contact us as below
