Three different graphite plates Product details

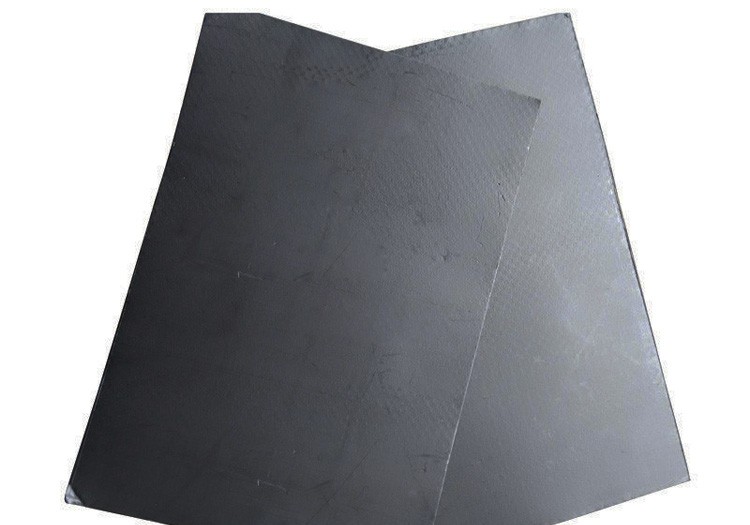

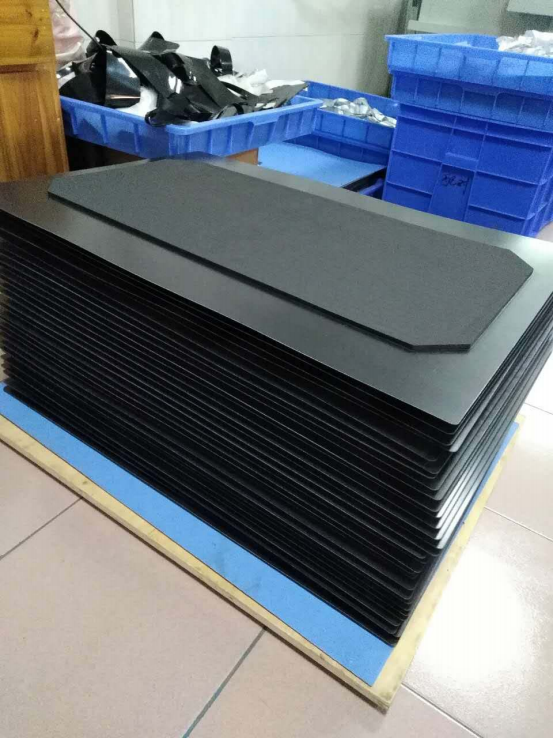

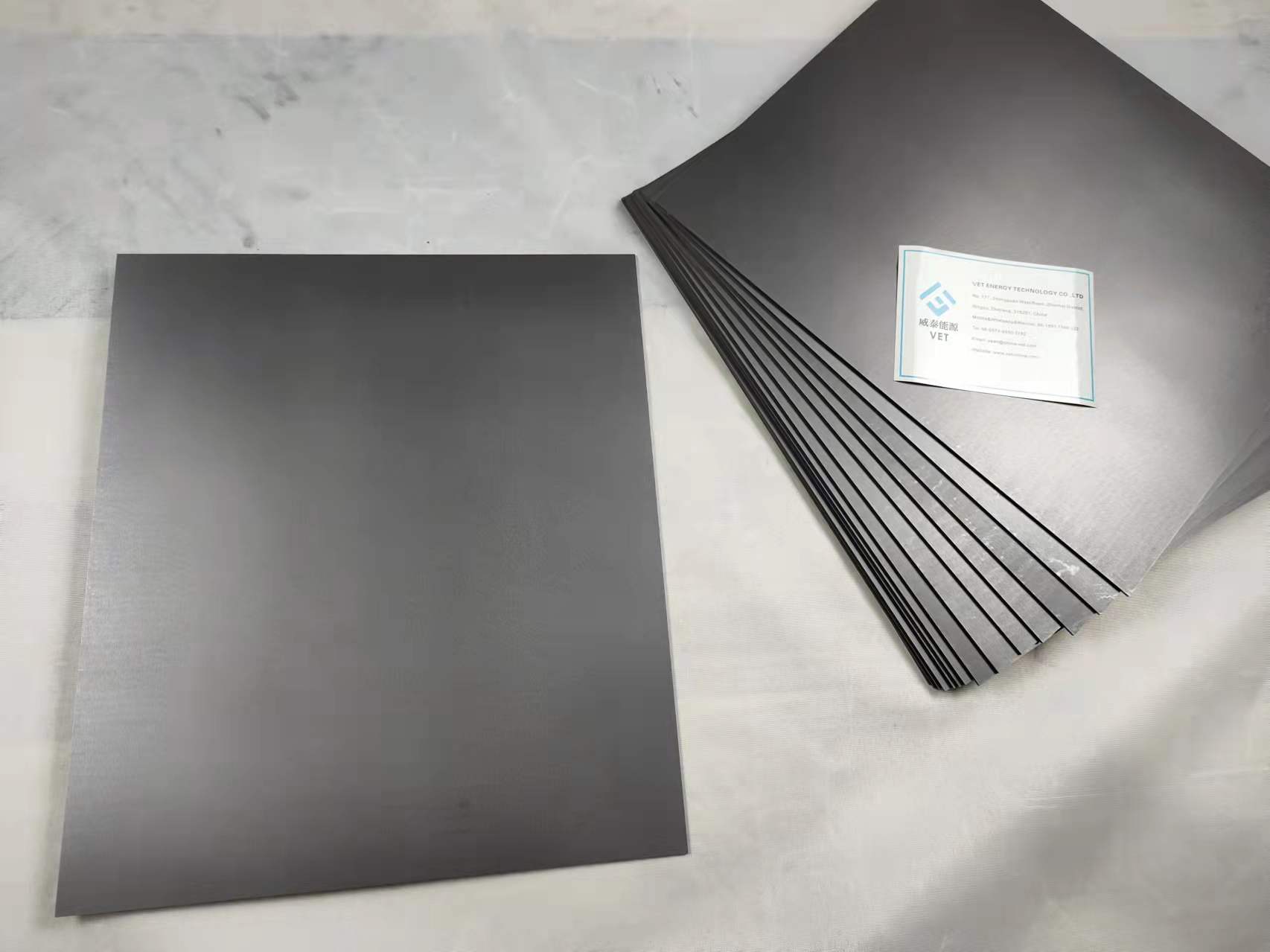

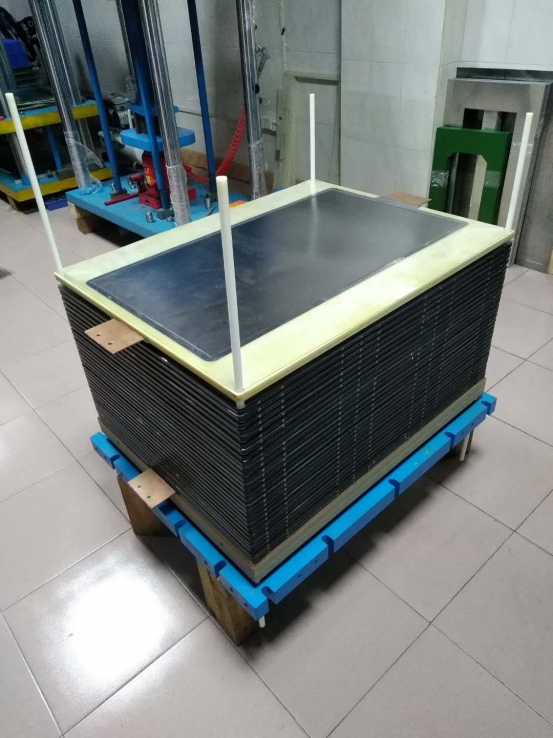

Specification of Popular Flexible Graphite Bipolar Plate:
which can be distinguished according to the maximum size, density and thickness.
|
Item
|
Remarks
|
||||
|
Dimension (mm)
|
L≤500
|
500＜L≤1000 |
1000＜L≤1500
|
L＞1500
|
maximum size
|
|
Density ( g/cm )
|
≥1.73
|
≥1.75
|
≥1.77
|
≥1.79
|
average value
|
|
Thickness (mm)
|
0.60±0.03
|
0.67±0.03
|
0.74±0.03
|
0.81±0.03
|
average value
|
Performance Index of Flexible Graphite Bipolar Plate
According to the testing requirements of NBT42007-2013, our products can meet the following indicators: The actual testing by customers can fully meet the requirements of use.
|
Item
|
Indicator
|
|
Tensile Strength（Mpa）
|
≥20
|
|
Bending Strength（Mpa）
|
≥20
|
| Conductivity（S/cm） |
≥300
|
|
Gas Tightness
|
No-leakage
|

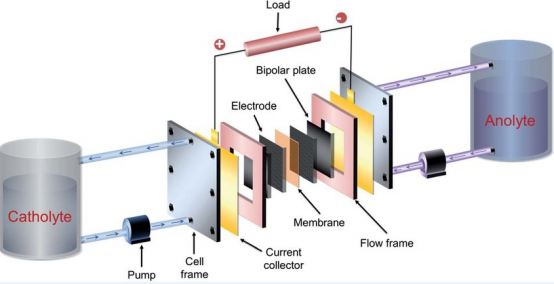

The graphite felt is used as electrode material for vanadium flow battery, Using imported oxide needle-punched felt, produced by carbonization, graphitization and other processes.Because the production is processed by continuous equipment, the surface of the felt is flat with uniform thickness, and the electrochemical properties are the same. in the use of electrode materials, our graphite felt has the characteristics of small internal resistances, good and uniform electrochemical activity, good corrosion resistance, low cycle attenuation and high energy efficiency,etc...
-
-

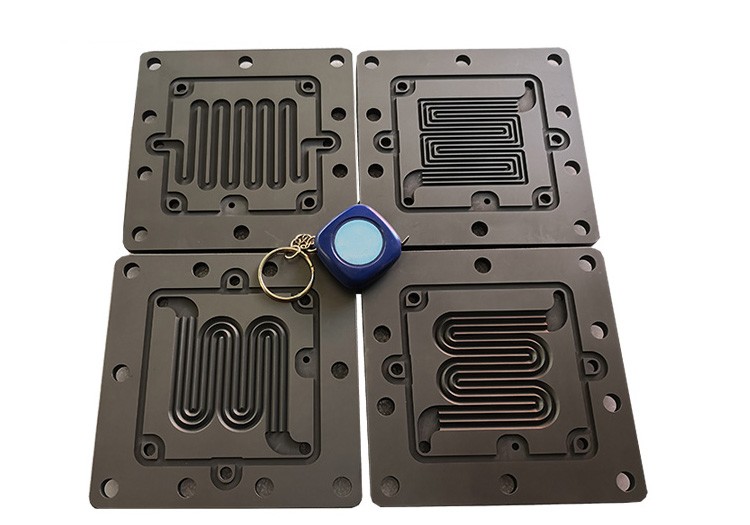

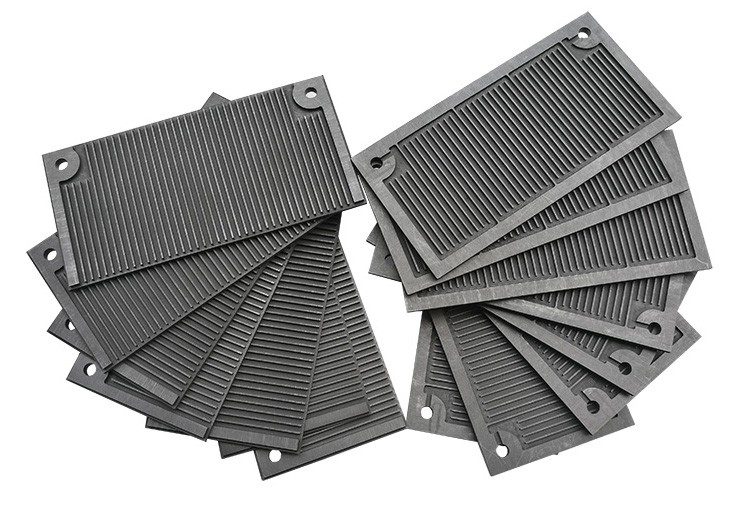

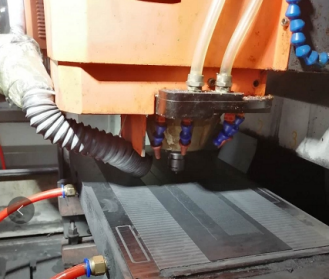

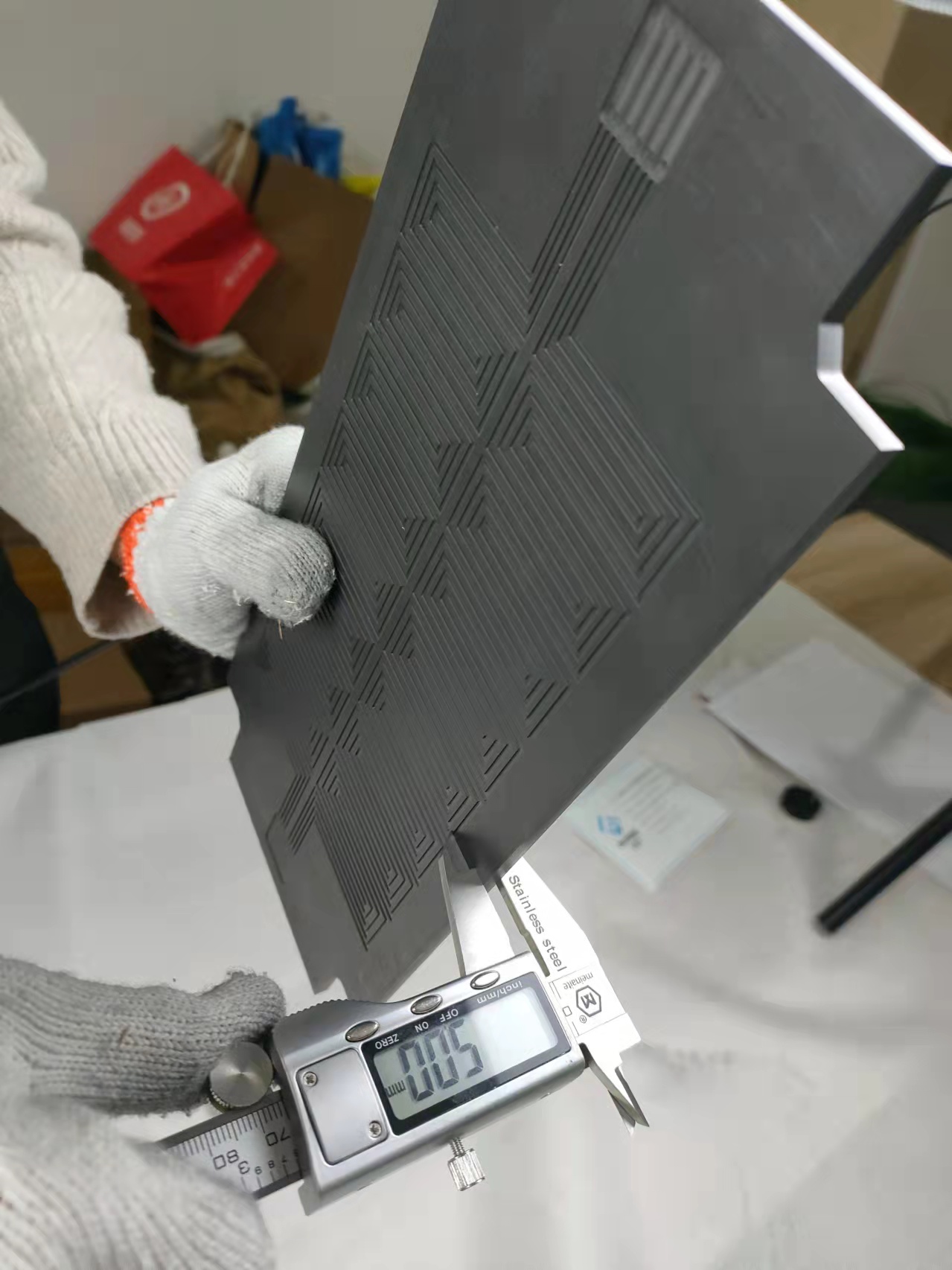

Specification of fuel cell Graphite bipolar plate：

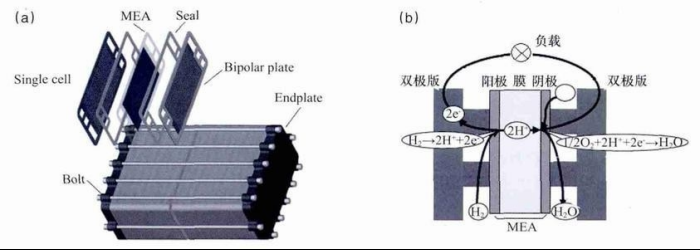

The function of bipolar plate (also known as diaphragm) is to provide gas flow channel, prevent the collusion between hydrogen and oxygen in the battery gas chamber, and establish a current path between the Yin and Yang poles in series. On the premise of maintaining a certain mechanical strength and good gas resistance, the thickness of bipolar plate should be as thin as possible to reduce the conduction resistance to current and heat
Carbonaceous materials. Carbonaceous materials include graphite, molded carbon materials and expanded (flexible) graphite. The traditional bipolar plate adopts dense graphite and is machined into gas channel· The graphite bipolar plate has stable chemical properties and low contact resistance with mea.
Bipolar plates need proper surface treatment. After nickel plating on the anode side of the bipolar plate, the conductivity is good, and it is not easy to be wetted by the electrolyte, which can avoid the loss of electrolyte. The flexible contact between the electrolyte diaphragm and the bipolar plate outside the effective area of the electrode can effectively prevent the gas from leaking out, which is the so-called "wet seal". In order to reduce the corrosion of molten carbonate on stainless steel at the "wet seal" position, the bipolar plate frame needs to be "aluminized" for protection
customized
| Processing length of single plate | Processing width of single plate | Processing thickness of single plate | Minimum thickness for processing single plate | Recommended operating temperature |
| customized | customized | 0.6-20mm | 0.2mm | ≤180℃ |
| Density | Shorehardness | Shorehardness | FlexuralStrength | Electricalresistivity |
| ＞1.9g/cm3 | ＞1.9g/cm3 | ＞100MPa | ＞50MPa | ＜12µΩm |
| Impregnationprocess1 | Impregnationprocess2 | Impregnationprocess3 |
| The minimum thickness for processing single plate is 0.2mm.1KG/KPA without leakage | The minimum thickness for processing single plate is 0.3mm.2KG/KPA without leakage | The minimum thickness for processing single plate is 0.1mm.1KG/KPA without leakage |
Anti-explosion performance test of adhesive plate (method from American fuel bipolar plate company)
The special tooling locks the four sides of the adhesive plate with a torque wrench of 13N.M, and pressurizes the cooling chamber. The adhesive plate will not be opened and leaked when the air pressure intensity is ≥4.5KG(0.45MPA)
Air tightness test of adhesive plate
Under the condition of pressurizing the cooling chamber with 1KG(0.1MPA) , there is no leakage in the hydrogen chamber, oxygen chamber and outer chamber.
Contact resistance measurement
Single-point contact resistance:＜9mΩ.cm2 Average contact resistance:＜6mΩ.cm2
Points for Attention:
Do not put sharp instruments into the box when opening, which may cause damage to the product.
When taking out the product, gently pull up the label paper until the corner of the product is lifted slightly,
then take out the whole product
It is recommended to wear smooth disposable gloves in the process of taking products.
It should be handled lightly to avoid product damage.
Specification of Conductive plastic bipllar plate :
|
Indicator
|
Unit
|
Value
|
|
Thickness
|
mm
|
0.8-1.2
|
|
ThicknessUniformity
|
%
|
<3
|
|
VolumeResistivity
|
Ω.CM
|
<2.5
|
|
TensileStrength
|
MPa
|
>15
|
|
FractureElongation
|
%
|
>5
|
|
WeldingStrength
|
MPa
|
>15
|
|
CoatingStatus
|
uniformandnopeeling
|
Lowresistivityandhightensilestrength
Highcorrosionresistance,highdeformationresistance
Excellentsurfaceactivelayer,highspecificsurfacearea
Goodweldingperformance
Quick Service
For before-order tage,our professional sales team could respond your inquiry within 50-100 minutes during working hours and within 12 hours during close time. Quick and professional reply will help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will take pictures every 3 to 5 days for your 1st hand information update of the production and provide documents within 36 hours to update shipping progress. We pay high attention to after-sale service.
For after-sale stage, our service team always keep close contact with you and always stand by at your service. Our professional after sale service even include fly our engineers to help you solving problems on site. Our warranty is 12 months after delivery.
