China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy Detail:

Graphite tube features:

High strength, High mechanical strength
High corrosion resistant ,high temperature…



Suitable for:
Thrust washers, Bushings & bearings
Commonly in furnaces and heating elements
Degassing shafts and impellers, fluxing and injection tubes

Extremes of elements and potential stresses.

Grade of Graphite Material

Material Name Type No Bulk Density SpecificResistance FlexuralStrength Compressive Strength Ash Max Particle size Processing
g/cm3 μΩm Mpa  Mpa % Max
Electrode Graphite VT-RP ≥1.55~1.75 7.5~8.5 ≥8.5 ≥20 ≤0.3 ≤8~10mm Impregnation Optional
Vibration Graphite VTZ2-3 ≥1.72 7~9 ≥13.5 ≥35 ≤0.3 ≤0.8 mm Two ImpregnationThree Baking
VTZ1-2 ≥1.62 7~9 ≥9 ≥22 ≤0.3 ≤2 mm One ImpregnationTwo Baking
Extruded Graphite VTJ1-2 ≥1.68 7.5~8.5 ≥19 ≥38 ≤0.3 ≤0.2 mm One ImpregnationTwo Baking
Molded Graphite VTM2-3 ≥1.80 10~13 ≥40 ≥60 ≤0.1 ≤0.043 mm Two ImpregnationThree Baking
VTM3-4 ≥1.85 10~13 ≥47 ≥75 ≤0.05 ≤0.043 mm Three ImpregnationFour Baking
Isostatic Graphite VTD2-3 ≥1.82 11~13 ≥38 ≥85 ≤0.1 2μm, 6μm, 8μm, 15μm,etc… Two ImpregnationThree Baking
VTD3-4 ≥1.88 11~13 ≥60 ≥100 ≤0.05 ≤0.015 mm Three ImpregnationFour Baking

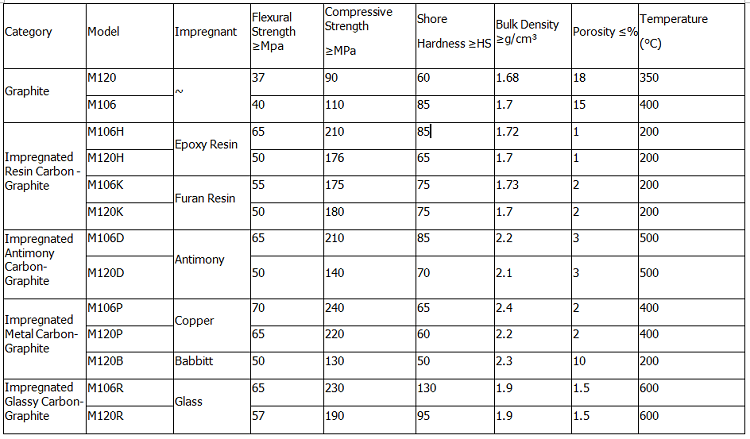

Carbon Graphite Material


1 2 3 4H7faf00f15d68498ba2c22ad4d03949c9k 图片3 图片4

Using imported various specifications of graphite materials, we supply our domestic and overseas customers

with superior quality and competitive prices.
In line with the enterprise spirit of “integrity is the foundation, innovation is the driving force, quality is the

guarantee”, adhering to the enterprise tenet of “solving problems for customers, creating the future for

employees”, and taking “promoting the development of low-carbon and energy-saving cause” as our

mission, we strive to build a first-class brand in the field.

图片5 图片6 图片7

FAQ:
1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc. .
If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 3-10 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 7-12days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

Hd1d385cbb301423fb062f3c144075a44i






Product detail pictures:

China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy detail pictures

China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy detail pictures

China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy detail pictures

China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy detail pictures

China wholesale Graphite Plate - High Pure Graphite Rod Melting Platinum Graphite Rod For Electrolysis – VET Energy detail pictures
