60w Pemfc 12v Hydrogen Fuel Cell For Laboratory Demonstration

Short Description:

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply 60w Pemfc 12v Hydrogen Fuel Cell For Laboratory Demonstration nufacturer and supplier. we are focusing on new material technology and automotive products.

Send email to us Download as PDF

Product Detail

Product Tags

Product Description

A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.

The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

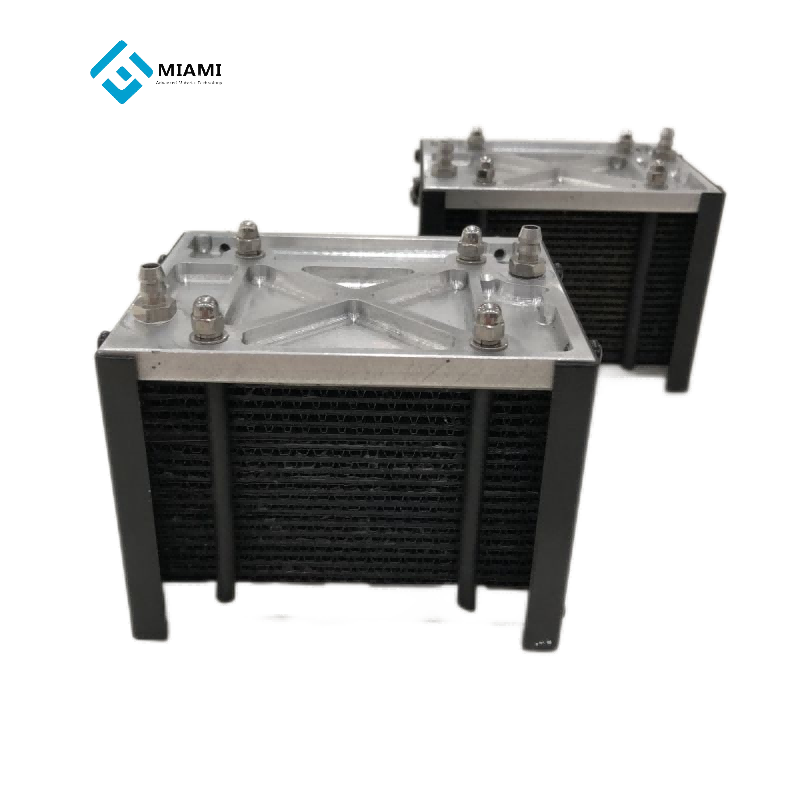

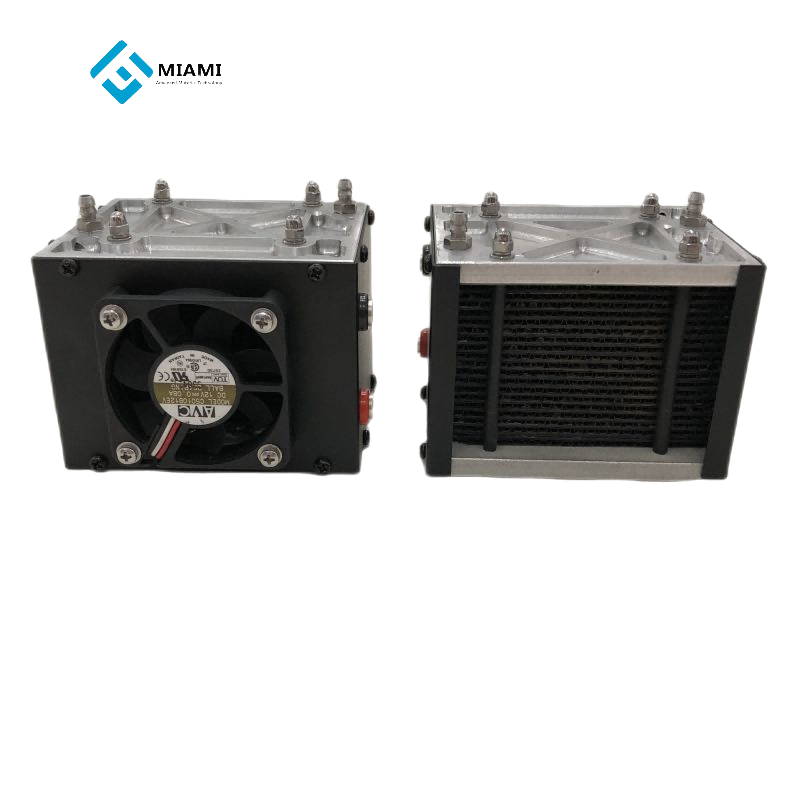

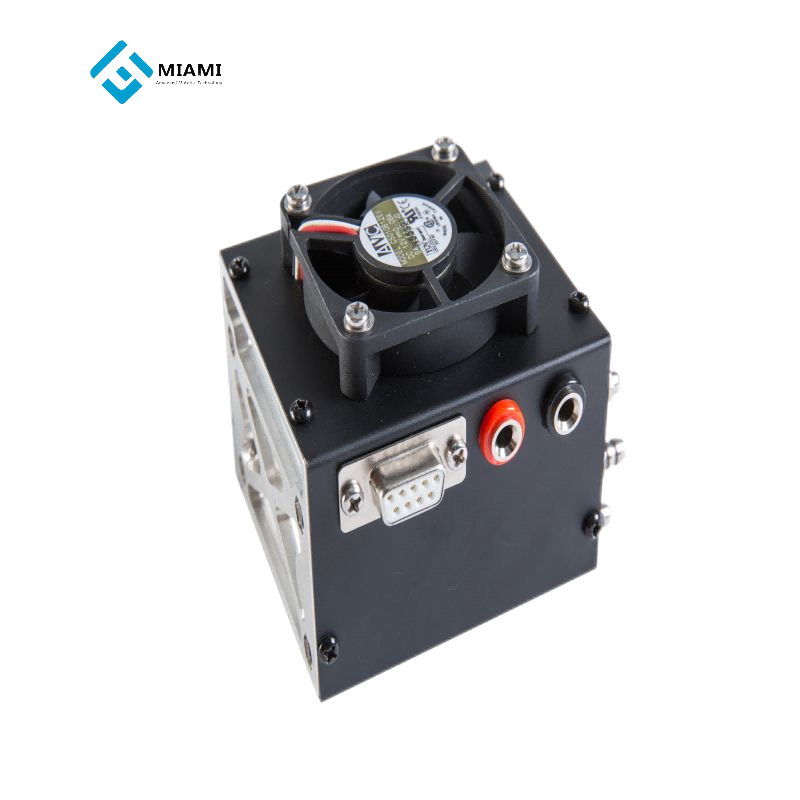

60W-12V Hydrogen Fuel Cell Stack

Inspecton Items & Parameter
Standard			Analysis
Output performance	Rated power	60W	79.2W
	Rated voltage	12V	12V
	Rated current	5A	6.6A
	DC voltage range	8-17V	12V
	Efficiency	≥50%	≥53%
Fuel	Hydrogen purity	≥99.99%(CO<1PPM)	99.99%
	Hydrogen pressure	0.04~0.06Mpa	0.05Mpa
	Hydrogen consumption	600mL/min
Environmental characteristics	Working temperature	-5~35℃	28℃
	Working environment humidity	10%~95%(No mist)	60%
	Storage ambient temperature	-10~50℃
	Noise	≤60dB

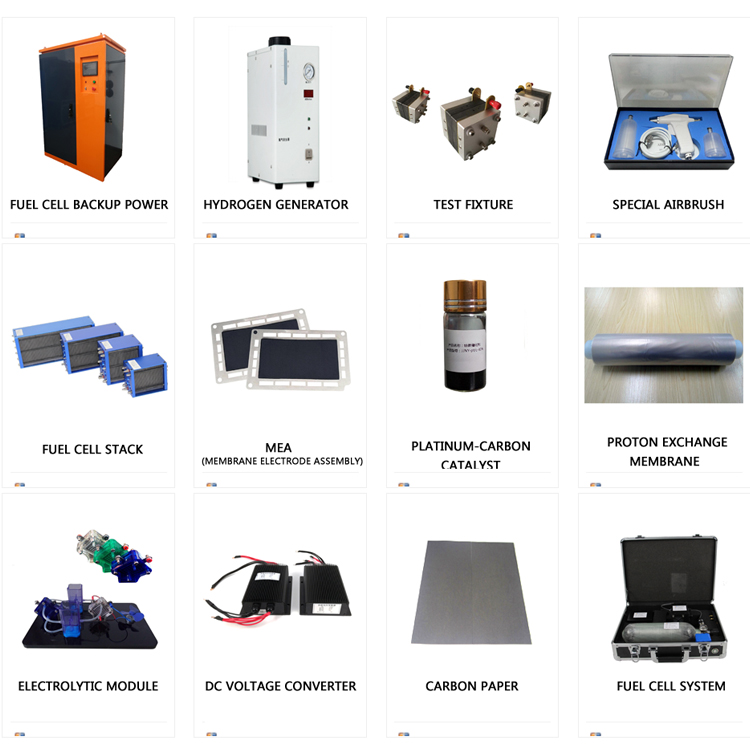

VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.

Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.

With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.
