The 25v Fuel Cell Pemfc Stack Metal Hydrogen Fuel Cells Hydrogen Fuel Cells Stack made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy 25v Fuel Cell Pemfc Stack Metal Hydrogen Fuel Cells Hydrogen Fuel Cells Stack with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.
A single fuel cell consists of a membrane electrode assembly (MEA) and two flow-field plates delivering about 0.5 and 1V voltage (too low for most applications). Just like batteries, individual cells are stacked to achieve a higher voltage and power. Thisassembly of cells is called a fuel cell stack, or just a stack.
The power output of a given fuel cell stack will depend on its size. Increasing the number of cells in a stack increases the voltage, while increasing the surface area of the cells increases the current. A stack is finished with end plates and connections for ease of further use.

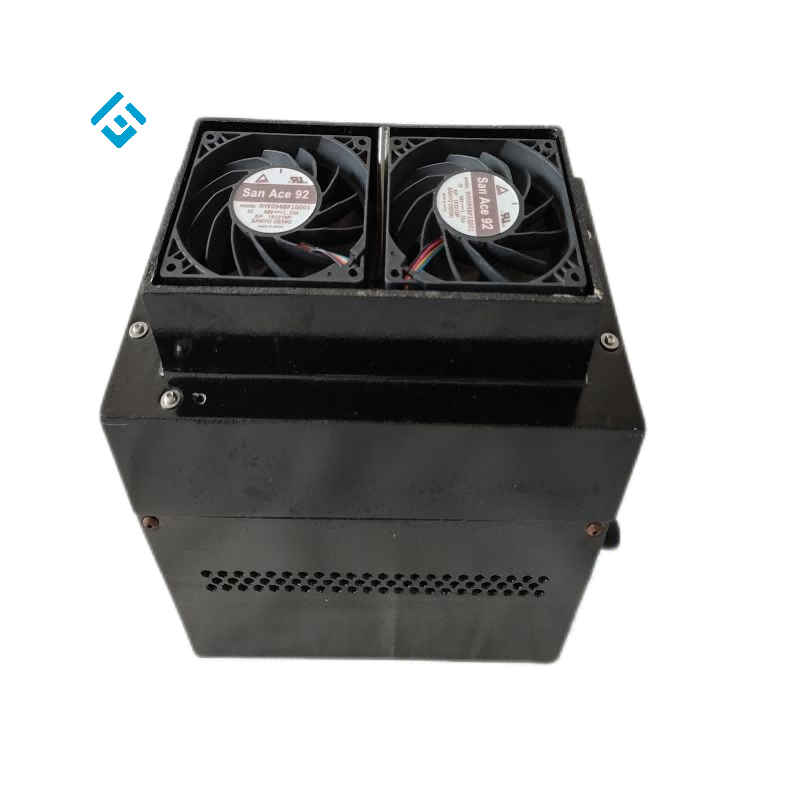

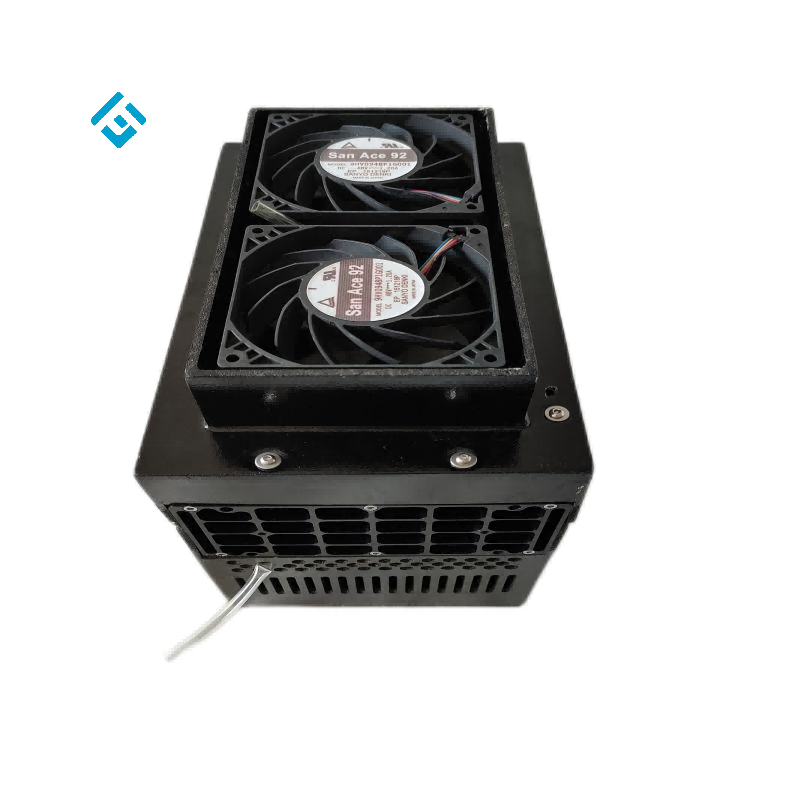

2000W-25V Hydrogen Fuel Cell Stack
Inspecton Items & Parameter
|
|||||
Standard |
Analysis |
||||
Output performance |
Rated power |
2000W |
2150W |
||
Rated current |
25V |
25V |
|||
Rated current |
80A |
86A |
|||
DC voltage range |
24-40V |
25V |
|||
Efficiency |
≥50% |
≥53% |
|||
Fuel |
Hydrogen purity |
≥99.99%(CO<1PPM) |
99.99% |
||
Hydrogen pressure |
0.05~0.07Mpa |
0.05Mpa |
|||
Hydrogen consumption |
2.4L/min |
2.59L/min |
|||
Environmental characteristics |
Working temperature |
-5~35℃ |
20℃ |
||
Working environment humidity |
10~95%(No mist) |
60% |
|||
Storage ambient temperature |
-10~50℃ |
|
|||
Noise |
≤60dB |
|
|||
Physical parameter |
System size(mm) |
266*215*157 |
Weight |
5.8 Kg |
VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.

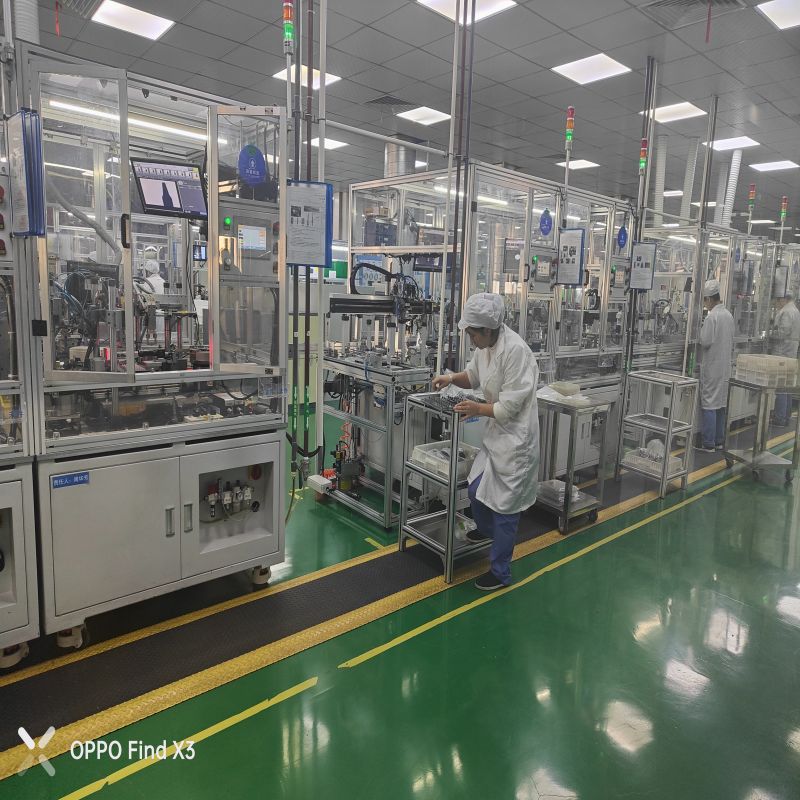

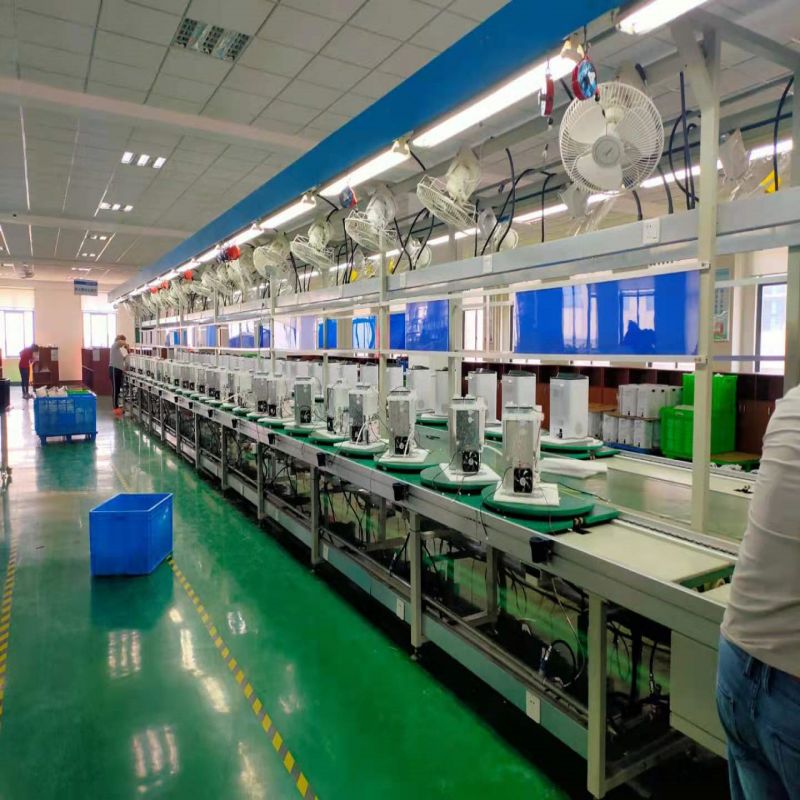

Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.
With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.
Why you can choose vet ?
1) we have sufficient stock guarantee.
2) professional packaging ensures product integrity. The product will be delivered to you safely.
3) more logistics channels enable products to be delivered to you.
