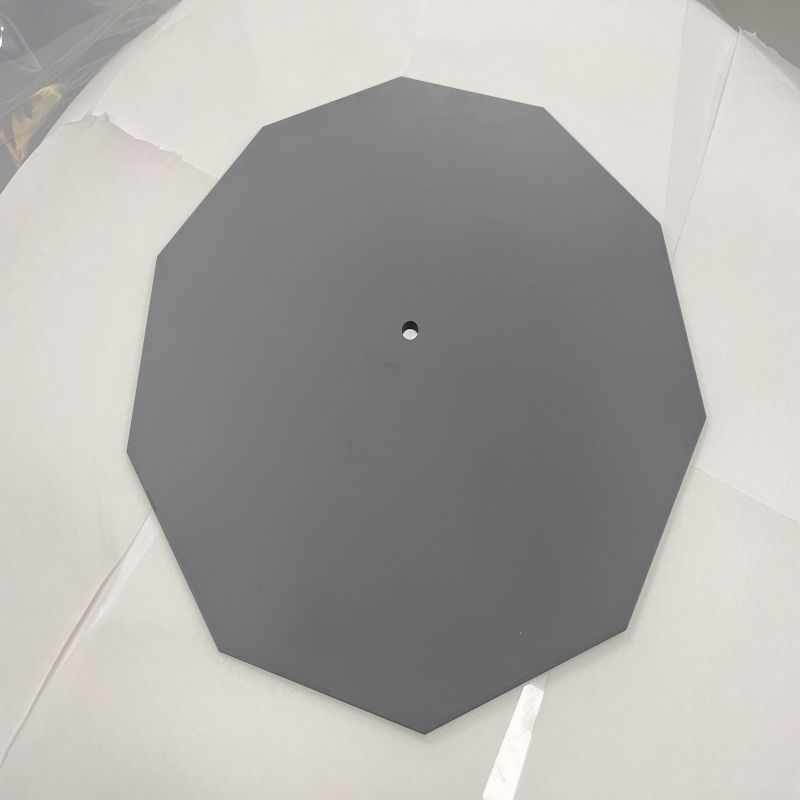

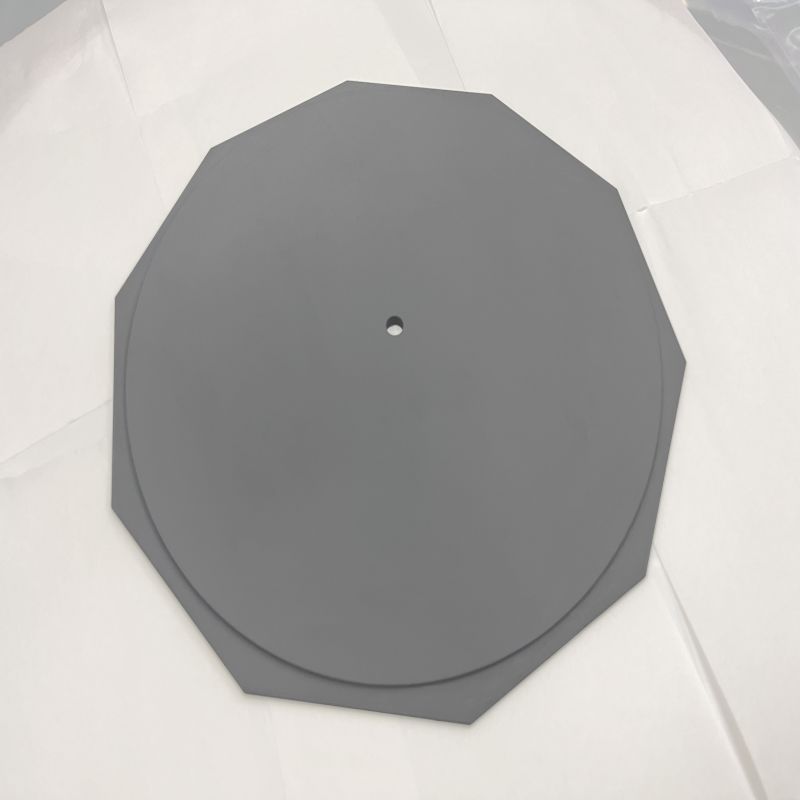

CovSilicon Carbide Coated Daim ntawv EpitaxialSim Siv hauvEpitaxial Rauv Khoomua nyob rau hauv Suav teb los ntawm Vet Energy, uas yog ib qho ntawm cov tuam ntxhab thiab cov muag khoom hauv Suav teb. Yuav Silicon Carbide CoatedDaim ntawv EpitaxialLub tais siv hauv Suav tebEpitaxial Rauv Khoomntawm tus nqi qis los ntawm peb lub Hoobkas. Peb muaj peb tus kheej lub npe thiab peb kuj txhawb nqa ntau. Yog tias koj txaus siab rau peb cov khoom, peb yuav muab tus nqi pheej yig rau koj. Txais tos mus yuav cov khoom luv nqi uas yog newest thiab zoo tshaj plaws ntawm peb.

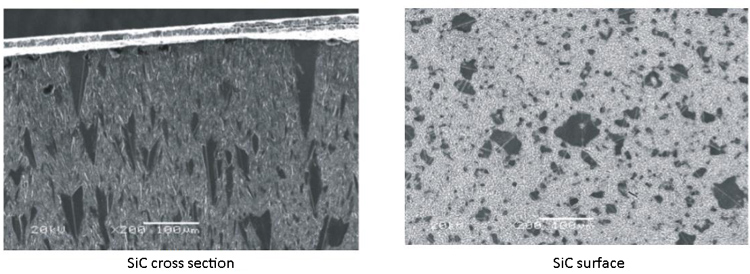

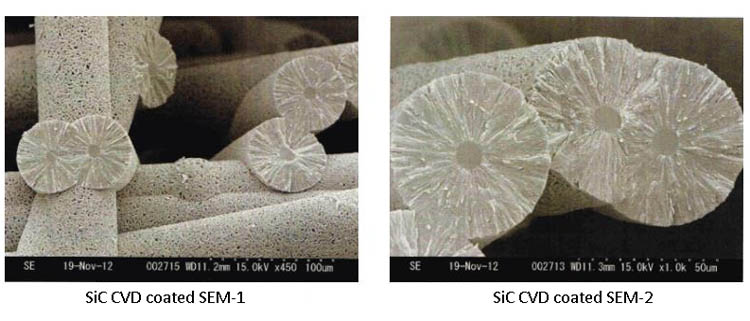

Peb lub tuam txhab muab SiC txheej txheej txheem kev pabcuam los ntawm CVD txoj hauv kev ntawm graphite, ceramics thiab lwm yam ntaub ntawv, kom cov pa roj tshwj xeeb uas muaj cov pa roj carbon thiab silicon hnov mob ntawm qhov kub kom tau txais siab purity SiC molecules, molecules tso rau saum npoo ntawm cov ntaub ntawv coated, tsim SIC tiv thaiv txheej.
Cov yam ntxwv tseem ceeb:
1. Kub kub oxidation tsis kam:
oxidation kuj tseem zoo heev thaum kub siab li 1600 C.
2. High purity: ua los ntawm cov tshuaj vapor deposition nyob rau hauv siab kub chlorination mob.
3. Erosion kuj: siab hardness, compact nto, zoo hais.
4. Corrosion kuj: acid, alkali, ntsev thiab organic reagents.
Main Specifications ntawm CVD-SIC Txheej:
SiC-CVD Properties | ||

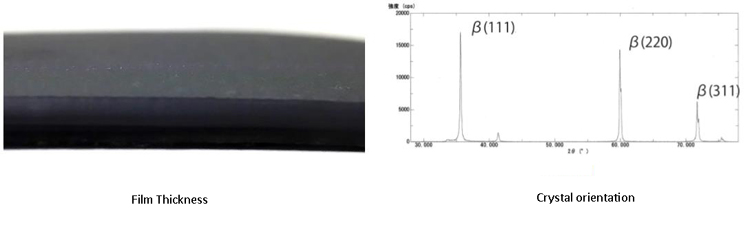

Crystal Structure | FCC β theem | |
Qhov ntom | g / cm³ | 3.21 |
Hardness | Vickers hardness | 2500 |

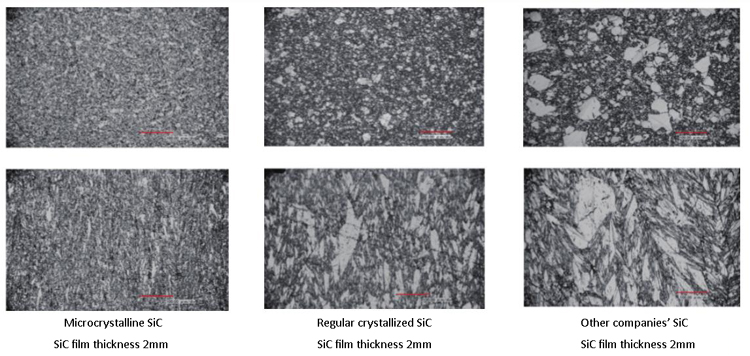

Loj Loj | ib m | 2 ~ 10 |
Tshuaj Purity | % | 99.999 5 |
Thaum tshav kub kub muaj peev xwm | J · kg-1· K-1 | 640 |
Sublimation kub | ℃ | 2700 ib |
Felexural zog | MPa (RT 4-point) | 415 |
Young's Modulus | Gpa (4pt khoov, 1300 ℃) | 430 |
Thermal Expansion (CTE) | 10-6K-1 | 4.5 |
Thermal conductivity | (W / mK) | 300 |
Vim li cas koj thiaj xaiv vet?
1) peb muaj cov khoom lag luam txaus lav.
2) kev ntim khoom ua kom cov khoom ruaj khov. Cov khoom yuav raug xa tuaj rau koj yam xyuam xim.
3) ntau logistics channel pab kom cov khoom xa tuaj rau koj.
